Beschreibung
-
Rahmen

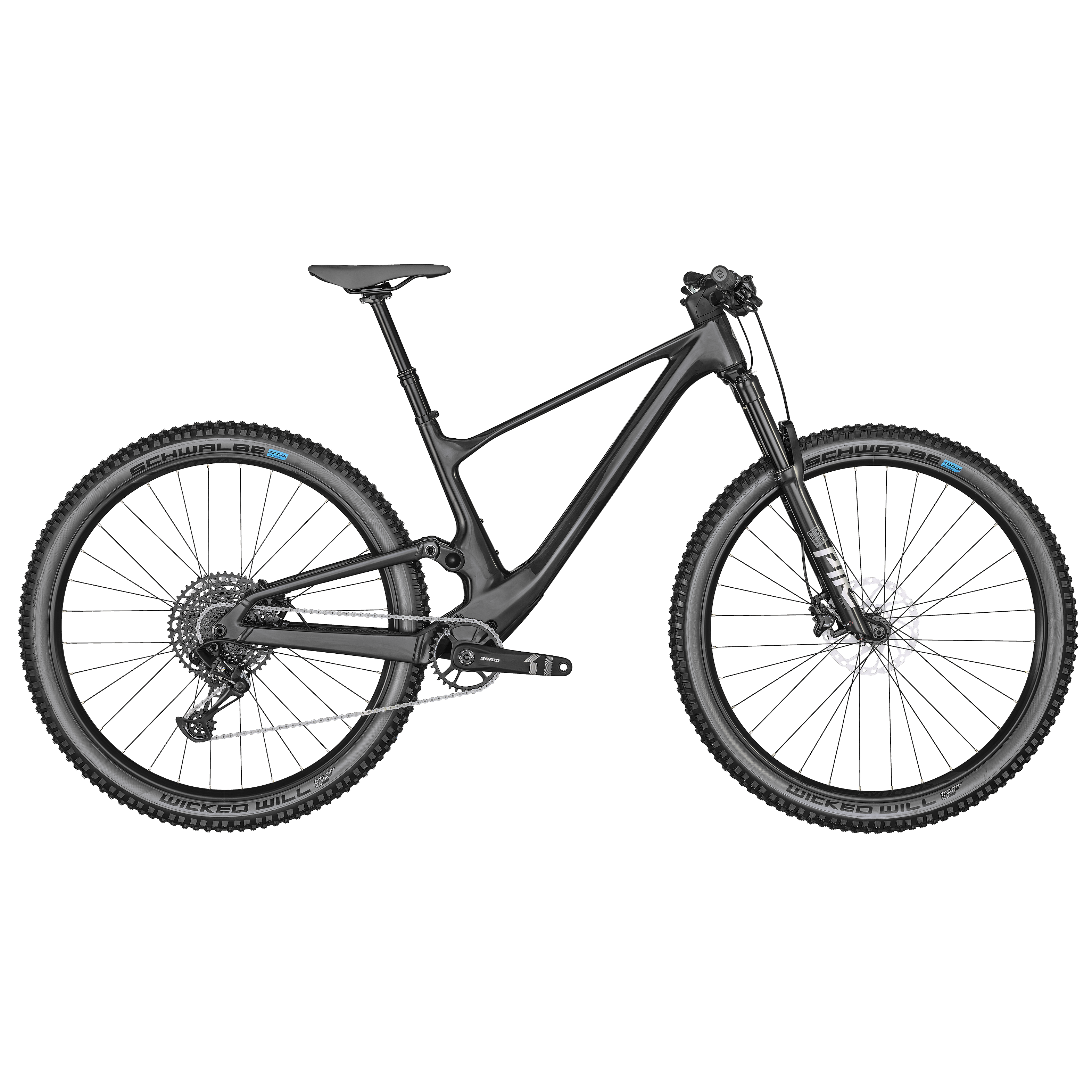

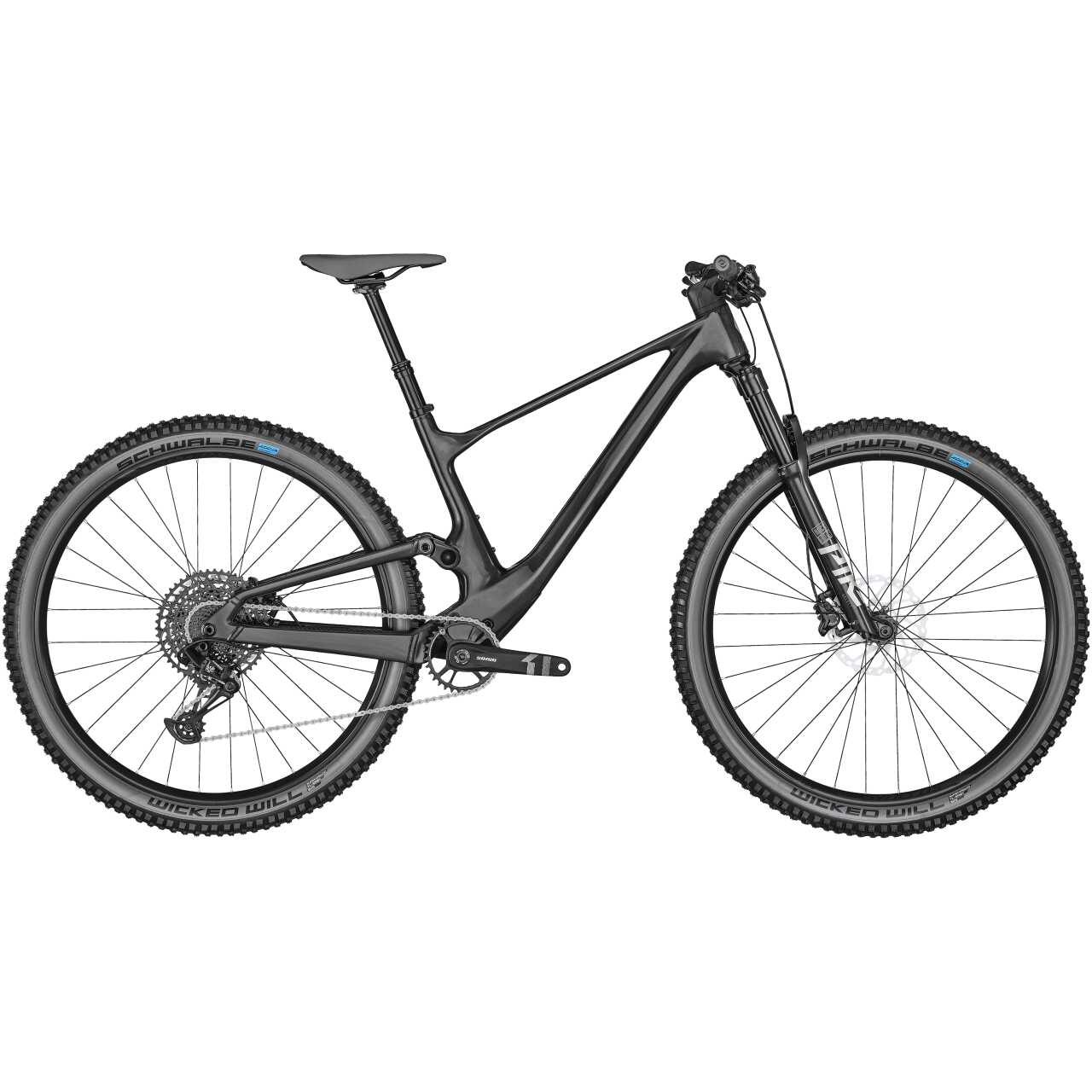

Spark Carbon HMF Mainframe with Alloy 6011 Swingarm
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Gabel
RockShox Pike Select RL3 Air
Custom Charger 3-Mode Damper
15x110mm Maxle Lite / 42mm offset / Tapered steerer
Lockout / Reb. Adj. / 130mm travel -
Dämpfer
RockShox Deluxe Select RL3 Trunnion
3 modes / Lockout-Trail-Descend
Debon Air / Reb. Adj.
Travel 120mm / T165X45mm -
Lenker-fernbedienung
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
Schaltwerk
SRAM NX Eagle 12 Speed -
Schalthebel
SRAM SX Eagle Trigger -
Kurbelsatz
SRAM X1 Eagle DUB
55mm CL / 32T -
Innenlager
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
Kette
SRAM CN NX Eagle -
Kassette
SRAM SX-PG1210 / 11-50 T -
Bremsen
Shimano MT501 Disc -
Bremsscheibe
Shimano SM-RT54 CL / F&R 180mm -
Lenker
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Pro lock-on grips -
Vorbau
Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8″ -
Sattelstütze
Syncros Duncan Dropper Post 2.5
31.6mm / S & M size 125mm / L & XL size 150mm -
Sattel
Syncros Tofino 2.5 Regular -
Steuersatz
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Vorderradnabe
Formula CL-811 / 15x110mm -
Hinterradnabe
Formula CL-148S / 12x148mm
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools -
Speichen
Stainless Black 15G / 1.8mm -
Felgen
Syncros X-30SE / 32H / 30mm
Tubeless ready -
Vorderreifen
Schwalbe Wicked Will 29×2.4″ EVO
Super Ground / TLE / 67EPI / Addix Speed Grip -
Hinterreifen
Schwalbe Wicked Will 29×2.4″ EVO
Super Ground / TLE / 67EPI / Addix Speed Grip -
Gewicht in Kg (ca.)
13.6 (Tubless setup)
